 * Intercept the given method invocation, submit the actual calling of the method to
 * the correct task executor and return immediately to the caller.
 * @param invocation the method to intercept and make asynchronous
 * @return {@link Future} if the original method returns {@code Future}; {@code null}
 * otherwise.
 */
@Override
@Nullable
public Object invoke(final MethodInvocation invocation) throws Throwable {
	Class<?> targetClass = (invocation.getThis() != null ? AopUtils.getTargetClass(invocation.getThis()) : null);
	Method specificMethod = ClassUtils.getMostSpecificMethod(invocation.getMethod(), targetClass);
	final Method userDeclaredMethod = BridgeMethodResolver.findBridgedMethod(specificMethod);

       // 申明一个线程池
	AsyncTaskExecutor executor = determineAsyncExecutor(userDeclaredMethod);
	if (executor == null) {
		throw new IllegalStateException(
				"No executor specified and no default executor set on AsyncExecutionInterceptor either");
	}

	Callable<Object> task = () -> {
		try {
			Object result = invocation.proceed();
			if (result instanceof Future) {
				return ((Future<?>) result).get();
			}
		}
		catch (ExecutionException ex) {
			handleError(ex.getCause(), userDeclaredMethod, invocation.getArguments());
		}
		catch (Throwable ex) {
			handleError(ex, userDeclaredMethod, invocation.getArguments());
		}
		return null;
	};

       // 向线程池提交任务
	return doSubmit(task, executor, invocation.getMethod().getReturnType());
}

   /**
 * Create a new instance with a default {@link AsyncUncaughtExceptionHandler}.
 * @param defaultExecutor the {@code Executor} (typically a Spring {@code AsyncTaskExecutor}
 * or {@link java.util.concurrent.ExecutorService}) to delegate to, unless a more specific
 * executor has been requested via a qualifier on the async method, in which case the
 * executor will be looked up at invocation time against the enclosing bean factory
 */
public AsyncExecutionAspectSupport(@Nullable Executor defaultExecutor) {
	this.defaultExecutor = new SingletonSupplier<>(defaultExecutor, () -> getDefaultExecutor(this.beanFactory));
	this.exceptionHandler = SingletonSupplier.of(SimpleAsyncUncaughtExceptionHandler::new);
}


   // 获取线程池的具体实现
   @Nullable
protected AsyncTaskExecutor determineAsyncExecutor(Method method) {
	AsyncTaskExecutor executor = this.executors.get(method);
	if (executor == null) {
		Executor targetExecutor;
		String qualifier = getExecutorQualifier(method);
		if (StringUtils.hasLength(qualifier)) {
			targetExecutor = findQualifiedExecutor(this.beanFactory, qualifier);
		}
		else {
               // 如果@async注解没有制定线程池则使用默认线程池
			targetExecutor = this.defaultExecutor.get();
		}
		if (targetExecutor == null) {
			return null;
		}
		executor = (targetExecutor instanceof AsyncListenableTaskExecutor ?
				(AsyncListenableTaskExecutor) targetExecutor : new TaskExecutorAdapter(targetExecutor));
		this.executors.put(method, executor);
	}
	return executor;
}


   /**
 * Retrieve or build a default executor for this advice instance.
 * An executor returned from here will be cached for further use.
 * <p>The default implementation searches for a unique {@link TaskExecutor} bean
 * in the context, or for an {@link Executor} bean named "taskExecutor" otherwise.
 * If neither of the two is resolvable, this implementation will return {@code null}.
 * @param beanFactory the BeanFactory to use for a default executor lookup
 * @return the default executor, or {@code null} if none available
 * @since 4.2.6
 * @see #findQualifiedExecutor(BeanFactory, String)
 * @see #DEFAULT_TASK_EXECUTOR_BEAN_NAME
 */
@Nullable
protected Executor getDefaultExecutor(@Nullable BeanFactory beanFactory) {
	if (beanFactory != null) {
		try {
			// Search for TaskExecutor bean... not plain Executor since that would
			// match with ScheduledExecutorService as well, which is unusable for
			// our purposes here. TaskExecutor is more clearly designed for it.
               // 从bean工厂中获取线程池bean实例
			return beanFactory.getBean(TaskExecutor.class);
		}
		catch (NoUniqueBeanDefinitionException ex) {
			logger.debug("Could not find unique TaskExecutor bean", ex);
			try {
				return beanFactory.getBean(DEFAULT_TASK_EXECUTOR_BEAN_NAME, Executor.class);
			}
			catch (NoSuchBeanDefinitionException ex2) {
				if (logger.isInfoEnabled()) {
					logger.info("More than one TaskExecutor bean found within the context, and none is named " +
							"'taskExecutor'. Mark one of them as primary or name it 'taskExecutor' (possibly " +
							"as an alias) in order to use it for async processing: " + ex.getBeanNamesFound());
				}
			}
		}
		catch (NoSuchBeanDefinitionException ex) {
			logger.debug("Could not find default TaskExecutor bean", ex);
			try {
				return beanFactory.getBean(DEFAULT_TASK_EXECUTOR_BEAN_NAME, Executor.class);
			}
			catch (NoSuchBeanDefinitionException ex2) {
				logger.info("No task executor bean found for async processing: " +
						"no bean of type TaskExecutor and no bean named 'taskExecutor' either");
			}
			// Giving up -> either using local default executor or none at all...
		}
	}
	return null;
}

@ConditionalOnClass(ThreadPoolTaskScheduler.class)
@Configuration
@EnableConfigurationProperties(TaskSchedulingProperties.class)
public class TaskSchedulingAutoConfiguration {

	@Bean
	@ConditionalOnBean(name = TaskManagementConfigUtils.SCHEDULED_ANNOTATION_PROCESSOR_BEAN_NAME)
	@ConditionalOnMissingBean({ SchedulingConfigurer.class, TaskScheduler.class,
			ScheduledExecutorService.class })
	public ThreadPoolTaskScheduler taskScheduler(TaskSchedulerBuilder builder) {
		return builder.build();
	}

	@Bean
	@ConditionalOnMissingBean
	public TaskSchedulerBuilder taskSchedulerBuilder(TaskSchedulingProperties properties,
			ObjectProvider<TaskSchedulerCustomizer> taskSchedulerCustomizers) {
		TaskSchedulerBuilder builder = new TaskSchedulerBuilder();
		builder = builder.poolSize(properties.getPool().getSize());
		builder = builder.threadNamePrefix(properties.getThreadNamePrefix());
		builder = builder.customizers(taskSchedulerCustomizers);
		return builder;
	}

}

/**
 * Calls {@code initialize()} after the container applied all property values.
 * @see #initialize()
 */
@Override
public void afterPropertiesSet() {
	initialize();
}

/**
 * Set up the ExecutorService.
 */
public void initialize() {
	if (logger.isInfoEnabled()) {
		logger.info("Initializing ExecutorService" + (this.beanName != null ? " '" + this.beanName + "'" : ""));
	}
	if (!this.threadNamePrefixSet && this.beanName != null) {
		setThreadNamePrefix(this.beanName + "-");
	}
	this.executor = initializeExecutor(this.threadFactory, this.rejectedExecutionHandler);
}

    @Override
	protected ExecutorService initializeExecutor(
			ThreadFactory threadFactory, RejectedExecutionHandler rejectedExecutionHandler) {

		this.scheduledExecutor = createExecutor(this.poolSize, threadFactory, rejectedExecutionHandler);

		if (this.removeOnCancelPolicy) {
			if (this.scheduledExecutor instanceof ScheduledThreadPoolExecutor) {
				((ScheduledThreadPoolExecutor) this.scheduledExecutor).setRemoveOnCancelPolicy(true);
			}
			else {
				logger.debug("Could not apply remove-on-cancel policy - not a ScheduledThreadPoolExecutor");
			}
		}

		return this.scheduledExecutor;
	}


    /**
	 * Create a new {@link ScheduledExecutorService} instance.
	 * <p>The default implementation creates a {@link ScheduledThreadPoolExecutor}.
	 * Can be overridden in subclasses to provide custom {@link ScheduledExecutorService} instances.
	 * @param poolSize the specified pool size
	 * @param threadFactory the ThreadFactory to use
	 * @param rejectedExecutionHandler the RejectedExecutionHandler to use
	 * @return a new ScheduledExecutorService instance
	 * @see #afterPropertiesSet()
	 * @see java.util.concurrent.ScheduledThreadPoolExecutor
	 */

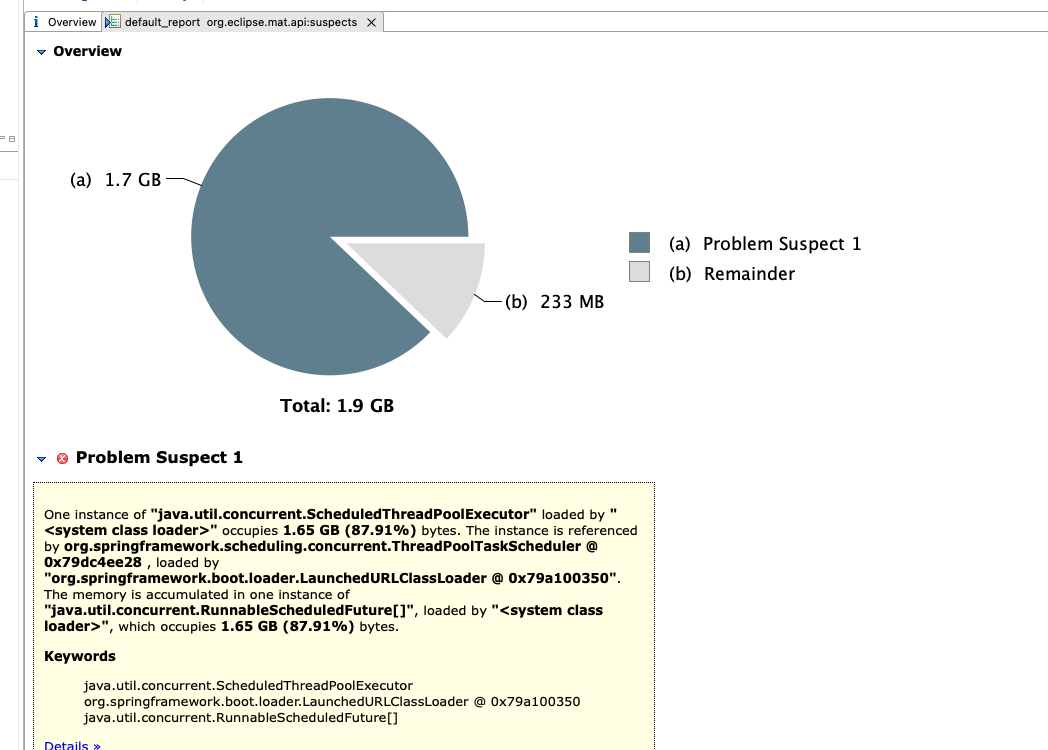

	protected ScheduledExecutorService createExecutor(
			int poolSize, ThreadFactory threadFactory, RejectedExecutionHandler rejectedExecutionHandler) {

		return new ScheduledThreadPoolExecutor(poolSize, threadFactory, rejectedExecutionHandler);
	}


/**
     * Creates a new ScheduledThreadPoolExecutor with the given
     * initial parameters.
     *
     * @param corePoolSize the number of threads to keep in the pool, even
     *        if they are idle, unless {@code allowCoreThreadTimeOut} is set
     * @param threadFactory the factory to use when the executor
     *        creates a new thread
     * @param handler the handler to use when execution is blocked
     *        because the thread bounds and queue capacities are reached
     * @throws IllegalArgumentException if {@code corePoolSize < 0}
     * @throws NullPointerException if {@code threadFactory} or
     *         {@code handler} is null
     */

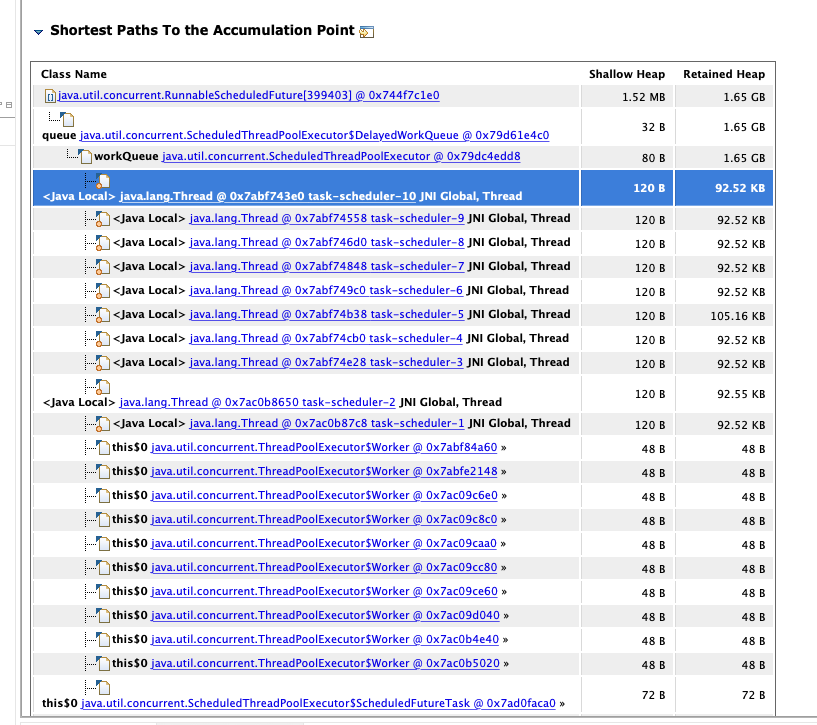

    public ScheduledThreadPoolExecutor(int corePoolSize,
                                       ThreadFactory threadFactory,
                                       RejectedExecutionHandler handler) {
        // 默认使用的是DelayedWorkQueue 无界队列
        super(corePoolSize, Integer.MAX_VALUE, 0, NANOSECONDS,
              new DelayedWorkQueue(), threadFactory, handler);
    }

public final class EncryptMergedResult implements MergedResult {

    private final EncryptAlgorithmMetaData metaData;

    private final MergedResult mergedResult;

    @Override
    public boolean next() throws SQLException {
        return mergedResult.next();
    }

    @SuppressWarnings({"rawtypes", "unchecked"})
    @Override
    public Object getValue(final int columnIndex, final Class<?> type) throws SQLException {
        Optional<EncryptContext> encryptContext = metaData.findEncryptContext(columnIndex);
        if (!encryptContext.isPresent() || !metaData.isQueryWithCipherColumn(encryptContext.get().getTableName(), encryptContext.get().getColumnName())) {
            return mergedResult.getValue(columnIndex, type);
        }
        Optional<EncryptAlgorithm> encryptAlgorithm = metaData.findEncryptor(encryptContext.get().getTableName(), encryptContext.get().getColumnName());
        if (!encryptAlgorithm.isPresent()) {
            return mergedResult.getValue(columnIndex, type);
        }
        Object cipherValue = mergedResult.getValue(columnIndex, Object.class);
        return null == cipherValue ? null : encryptAlgorithm.get().decrypt(cipherValue, encryptContext.get());
    }

    @Override
    public Object getCalendarValue(final int columnIndex, final Class<?> type, final Calendar calendar) throws SQLException {
        return mergedResult.getCalendarValue(columnIndex, type, calendar);
    }

    @Override
    public InputStream getInputStream(final int columnIndex, final String type) throws SQLException {
        return mergedResult.getInputStream(columnIndex, type);
    }

    @Override
    public boolean wasNull() throws SQLException {
        return mergedResult.wasNull();
    }
}

// 启动入口
SpringApplication.run(xxxxApplication.class, args);

// run实际调用
new SpringApplication(primarySources).run(args);

public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
		this.resourceLoader = resourceLoader;
		Assert.notNull(primarySources, "PrimarySources must not be null");
		this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
    // 获取web容器类型
		this.webApplicationType = WebApplicationType.deduceFromClasspath();
    /*
    * getSpringFactoriesInstances(ApplicationContextInitializer.class) 从META-INF/spring.factories中加载初始化器的     		* 具体实现类并实例化
    *
    * getSpringFactoriesInstances(ApplicationListener.class) 从META-INF/spring.factories中加载 监听器的具体实现类并  		 * 实例化
    *
    */
		setInitializers((Collection) getSpringFactoriesInstances(
				ApplicationContextInitializer.class));
		setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
		this.mainApplicationClass = deduceMainApplicationClass();
}

public ConfigurableApplicationContext run(String... args) {
		StopWatch stopWatch = new StopWatch();
		stopWatch.start();
		ConfigurableApplicationContext context = null;
		Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
		configureHeadlessProperty();
    // 从factories加载EventPublishingRunListener并初始化
		SpringApplicationRunListeners listeners = getRunListeners(args);
		listeners.starting();
		try {
			ApplicationArguments applicationArguments = new DefaultApplicationArguments(
					args);
      // 准备环境 并发送ApplicationEnvironmentPreparedEvent事件
			ConfigurableEnvironment environment = prepareEnvironment(listeners,
					applicationArguments);
      // 配置或略的bean
			configureIgnoreBeanInfo(environment);
			Banner printedBanner = printBanner(environment);
      // 创建spring上下文
			context = createApplicationContext();
			exceptionReporters = getSpringFactoriesInstances(
					SpringBootExceptionReporter.class,
					new Class[] { ConfigurableApplicationContext.class }, context);
      // 准备spring上下文 初始化bean
			prepareContext(context, environment, listeners, applicationArguments,
					printedBanner);
			refreshContext(context);
			afterRefresh(context, applicationArguments);
			stopWatch.stop();
			if (this.logStartupInfo) {
				new StartupInfoLogger(this.mainApplicationClass)
						.logStarted(getApplicationLog(), stopWatch);
			}
			listeners.started(context);
			callRunners(context, applicationArguments);
		}
		catch (Throwable ex) {
			handleRunFailure(context, ex, exceptionReporters, listeners);
			throw new IllegalStateException(ex);
		}

		try {
			listeners.running(context);
		}
		catch (Throwable ex) {
			handleRunFailure(context, ex, exceptionReporters, null);
			throw new IllegalStateException(ex);
		}
		return context;
	}

// 消费ApplicationEnvironmentPreparedEvent事件的监听器
FileEncodingApplicationListener
AnsiOutputApplicationListener
ConfigFileApplicationListener
DelegatingApplicationListener
ClasspathLoggingApplicationListener
LoggingApplicationListener
